PRODUCT DESCRIPTION

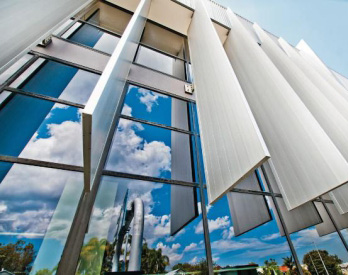

Compared to other wall decoration materials, Aluminium honeycomb panel has good heat preservation and heat insulation. The reason is that the air between the face and the bottom layer is separated into lots of cellular closed holes, for which the propagation of heat and sound wave is extremely limited. Today, aluminium honeycomb panel has been widely used in the decoration of modern architectures, train, automobile and ship manufacturing industries.
ADVANTAGES
Product Structure

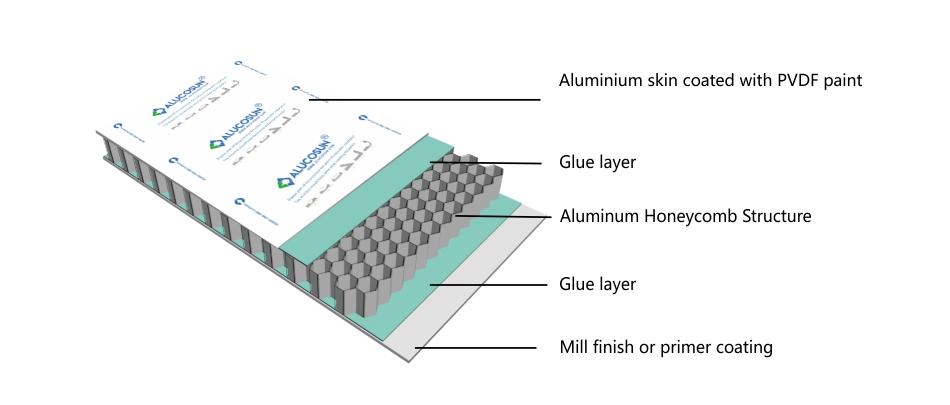

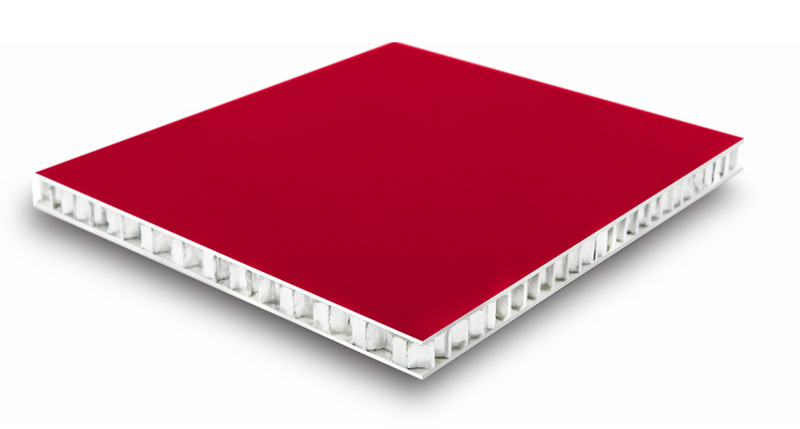

Delbond aluminium honeycomb panel is composed of two aluminium sheets and a honeycomb aluminium core, which like so many I-shaped beams distributing the pressure from different directions to well ensure the flatness of the panel even in large areas
Thanks to its unique structure, honeycomb has an impressive behavior in anti-load.
DIMENSIONS
| Standard thickness(mm) | Standard width(mm) | Standard length(mm) |
|---|---|---|
| 10 | 1250 | 2500/3200/4000 |
| 10 | 1500 | 2500/3200 |
| 15 | 1250 | 2500/3200 |
| 15 | 1500 | 2500/3200 |
| 20 | 1500 | 2500/3200 |
| 25 | 1500 | 2500/3200 |
| All standard formats available from stock | ||
·Upon Request: Special Thickness /Width /Length
TEST REPORT
| Item | Unit | Delbond | |||
|---|---|---|---|---|---|
| Standard thickness | mm | 10 | 15 | 20 | 25(max 50mm) |
| Front skin thickness | mm | ≥0.8 | |||
| Rear skin thickness | mm | ≥0.7 | |||
| Panel size | mm | Width:≤2000 Length:≤3000 | |||
| Weight | Kg/m2 | 5.0 | 6.7 | 7.0 | 7.3 |
| Rigidity | kNcm2/m | 21 900 | 75 500 | 138 900 | 221 600 |
| Modulus of elasticity | N/mm2 | 700 000 | |||
| Cell size | mm | 6mm-12mm | |||
| Sound reduction index | dB | 21 | 22 | 23 | 25 |
| Thermal resistance | m2k/w | 0.0074 | 0.0084 | 0.0089 | 0.0093 |
| Temperature resistance | ℃ | -40 to +80 | |||
