PRODUCT DESCRIPTION
With the improvement of core technology, Delbond FR has been developed for strict requirements of fire retardancy regulations in architecture products. Delbond FR has been requested by worldwide architects and building owners not only by its superb properties such as extreme flatness, high rigidity yet excellent form-ability, but also, the most important, its impressive performance in fire-proof benefiting from its mineral-filled core.
Delbond FR can be applied on the architecture products in a wide range, especially the public buildings such as shopping malls, hospitals, airports and stations.
ADVANTAGES
● Fire-resistant:
According to the fire rating and fire retardancy Delbond FR series is classified as class B1 and class A2.
● High Strength:
The fire-proof aluminium composite panel use high quality aluminium with greatly enhanced strength, and ensure performance of wind-pressure resistance, shockproof and anti-impact.
● Smooth Surface:
The fire-proof aluminium composite panel provides superior and smooth surface, satisfying the modern building with perfect appearance.
● Exertion and Design:
The fire-proof aluminium composite panel has a series of glosses and shapes to meet any designers’ specific needs and achieve perfect results.

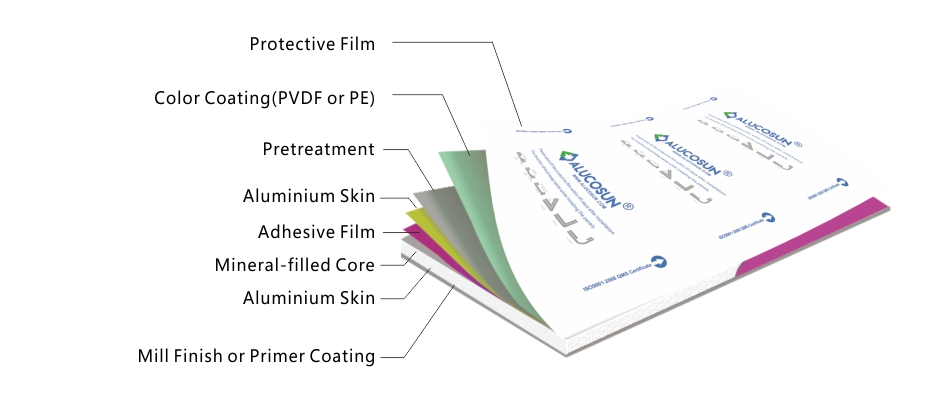

Product Structure:
Delbond fire-proof aluminium composite panel is composed of two aluminium sheets and a mineral-filled core that are laminated in the continuous process with high temperature, which ensures remarkable color consistency and high strength.
DIMENSIONS
Item | Recommended size |
---|---|
Panel thickness | 3mm, 4mm, 6mm |
Aluminium Skin Thickness | 0.3mm, 0.4mm, 0.5mm |
Width | 1250mm, 1500mm, 1575mm, 2000mm |
Length | 1000mm-6000mm |
Weight | 4mm B1: 6.8kg/m2 4mm A2: 8kg/m2 |
TEST REPORT
Country | Method | Delbond B1 | Delbond A2 |
---|---|---|---|
Australia | AS 1530-3 | No ignition | No ignition |
EU | EN 13501-1 | Class B, s1, d0 | Class A2, s1, d0 |
Germany | EN 1187(method 1)/DIN 4102-7 | Passed | Passed |
Malaysia | BS 476, PART 6&7 | Class 0; Class 1 | Class 0; Class 1 |
Singapore | EN13501-1 | Class B, s1, d0 | Class A2, s1, d0 |
UAE | EN 13501-1 | - | Class A2 |
ASTM-E-84 | Class A | - | |
UK | BS 6853 | - |
Meets requirements of LUL limited combustible-noncombustible |
BS 476, Part 6&7 | Class 0 | - |
