PRODUCT DESCRIPTION
Delbond offers excellent application versatility by an extensive array of colors and customized finish options. Delbond also offers reliability in performance by durable yet flexible surface and core. Furthermore Delbond representatives are always at the clients’ service with professional product knowledge and pertinent suggestions whenever needed.
Delbond has achieved great success by relentless innovation in both product and service, as does our commitment to your success in the past 20 years.
ADVANTAGES
● Extremely smooth surface and various colors:
We can provide RAL and Pantone colors, including high gloss(85-95%), matt gloss, brushed, mirror, and wooden finished board and customized to your requirements.
● Various dimensions:
Width is from 1000mm to 2000mm. Length can be customized to your needs beyond the standard size according to the processing techniques.
● Superior weather-resistance and rub-resistance:
Surface treatment with high-grade ultraviolet-resistant polyester paint (ECCA) request, guarantee 8-10 years; if use the KYNAR 500 PVDF paint, guaranteed 15-20 years.
● Easy processing and various modalities:
It can be processed to various forms and can be processed via cutting, bending, punching, sticking and painting.
● Environment friendly:
Our production facility is eco – friendly with zero pollution

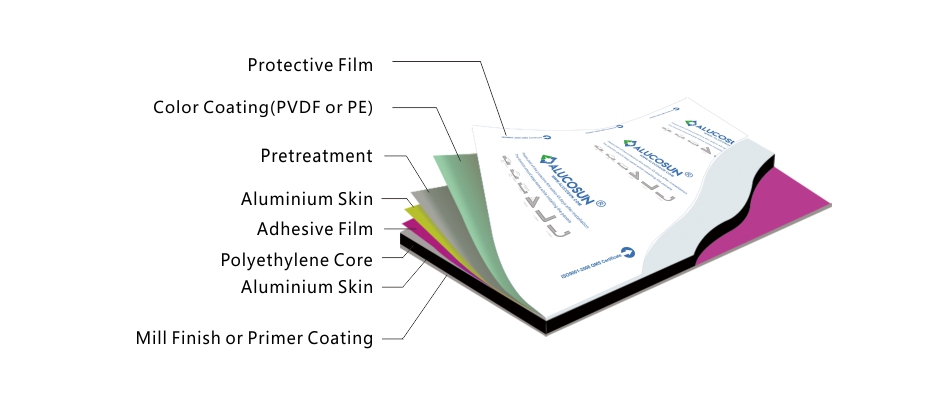

Product Structure:

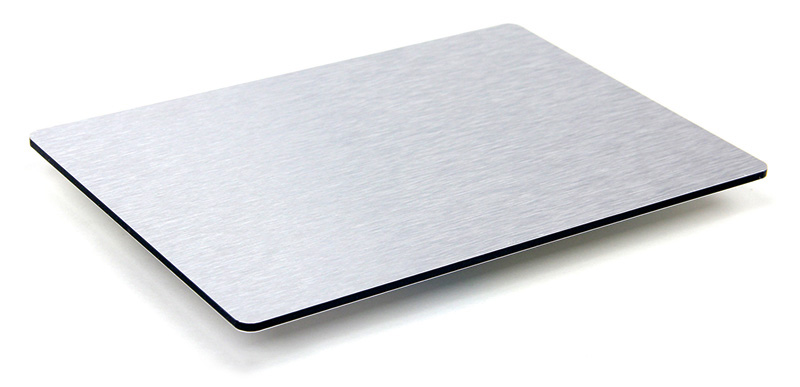

Delbond aluminium composite panel is composed of two aluminium sheets and a polyethylene core that are laminated in the continuous process with high temperature, which ensures remarkable color consistency and high strength.
DIMENSIONS
Item | Range | Standard size |
---|---|---|
Panel thickness | 2-8mm | 2mm, 3mm, 4mm, 6mm |
Aluminium skin thickness | 0.1-0.5mm | 0.15mm, 0.21mm, 0.3mm, 0.4mm, 0.5mm |
Width | 1000mm-2000mm |
1000mm, 1220mm, 1250mm, 1500mm, 1550mm, 2000mm |
Length | ≥1000mm | 2440mm, 3050mm, 3660mm, 4050mm |
TEST REPORT
Testing Item | Standard | Result |
---|---|---|
Unit Weight | ASTM D792 | 3mm=3.8kg/m2; 4mm=5.5kg/7m2 |
Thermal Expansion | ASTM D696 | 24-28 |
Thermal Deformation Temperature | ASTM D648 | 115℃ |
Thermal Conduction | ASTM D976 | 0.102kcal/m.hr℃ |
Flexural Rigidity | ASTM C393 | 14.0*10^5 |
Impact Resistance | ASTM D2794-93 | 1.64kgf |
Adhesive Strength | ASTM D903 | 0.77kg/mm |
Flexural Elasticity | ASTM D790 | 4030kg/mm2 |
Shear Resistance | ASTM D732 | 2.7kgf/mm2 |
Combustion expansion coefficient | ASTM E84 | QUALIFIED |
Performance of wind pressure resistance | ASTM E330 | PASSED |
Properties Against Water | ASTM E331 | PASSED |
